3RT Mold-Open + Air-Jig Rubber/Silicone Vacuum Compression Molding Machine
VCC-D3J/P1-2-4
Home / Our Products / Vacuum Molding Machine / VCC-D3J
Features
- The rubber/silicone vacuum compression molding machine with 3RT surpasses the traditional top opening mold that can be used for taking out the final product when there are triple or four molds with the design of the opening mold, pushing out the mold in between, loading the bottom mold, lowering the mold in between, and rising thimble to hit the final production.

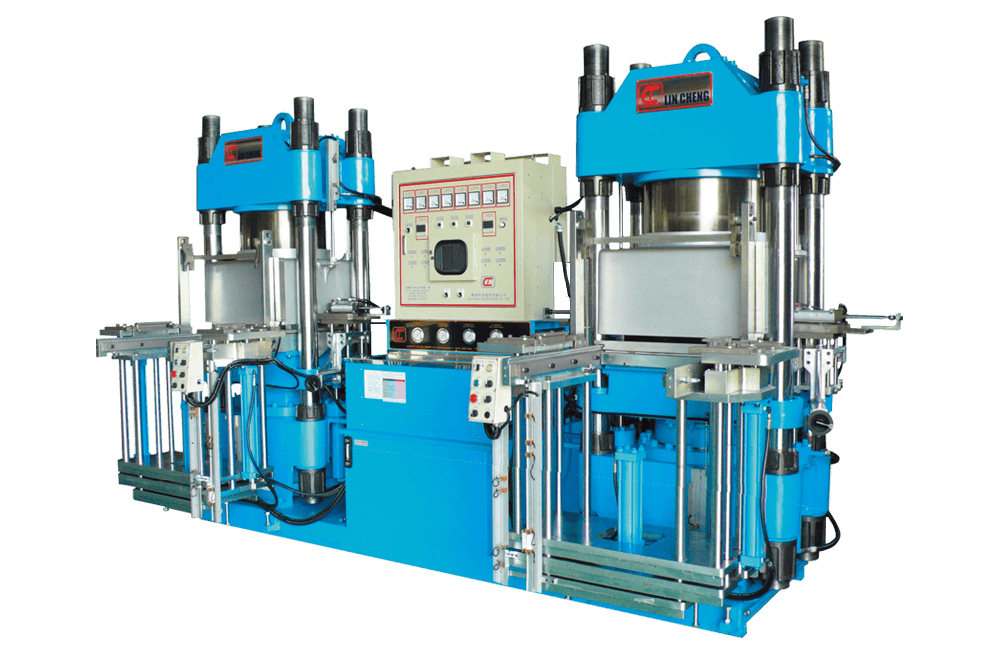

3RT Mold-Open + Air-Jig Rubber/Silicone Vacuum Compression Molding Machine
Specifications
| Diameter of piston (mm) | 250 | 300 | 350 | 400 | 450 | 560 | 700 | 800 | 960 |
|---|---|---|---|---|---|---|---|---|---|
| Clamping force (ton) | 100 | 150 | 200 | 250 | 300 | 500 | 800 | 1000 | 1500 |
| Stroke (mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 500 | 900 |
| Heating platen (mm) |
UP400*400 DN420*450 |
UP450*450 DN480*500 |
UP503*508 DN554*640 |
UP600*600 DN650*740 |
UP600*600 DN650*740 |
UP600*600 DN650*740 |
UP850*850 DN910*940 |
UP1000*1000 DN1200*1300 |
UP1500*1500 DN1800*1900 |
|
UP700*700 DN740*800 |
UP700*700 DN740*800 |
||||||||
| Horse (hp) | 7.5/10*1 | 10/15*1 | 10/15*1 | 10/15*1 | 10/10*2 | 15/15*2 | 20/20*2 | 20 | 30 |
