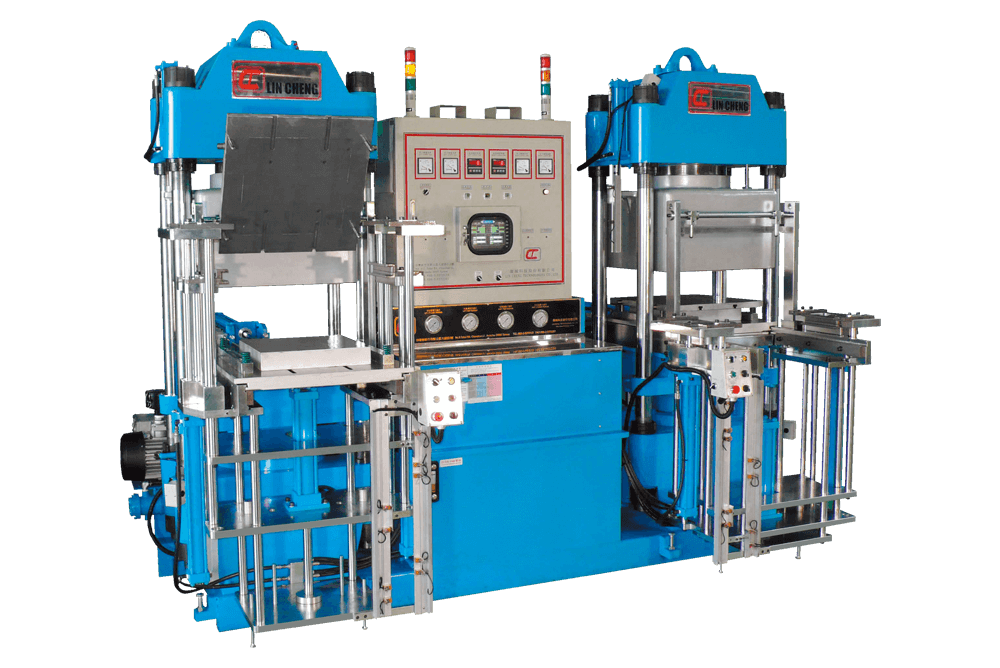

3RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine

P1-2-3

  • 3RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine

Features

  • The 3RT surpasses the traditional top opening mold that can be used for triple or four molds with the design of opening mold and pushing out the mold in between.



  • The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.




3RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine
  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 250 300 350 400 450 560 700 800 960
Clamping force (ton) 100 150 200 250 300 500 800 1000 1500
Stroke (mm) 250 250 250 250 250 250 250 500 900
Heating platen (mm) UP400*400
DN420*450
UP450*450
DN480*500
UP503*508
DN554*640
UP600*600
DN650*740
UP600*600
DN650*740
UP600*600
DN650*740
UP850*850
DN910*940
UP1000*1000
DN1200*1300
UP1500*1500
DN1800*1900
UP700*700
DN740*800
UP700*700
DN740*800
Horse (hp) 7.5/10*1 10/15*1 10/15*1 10/15*1 10/10*2 15/15*2 20/20*2 20 30
