2RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine
VCC-D2/P1-2-1
Home / Our Products / Vacuum Molding Machine / VCC-D2
Features
-
This type of machine is multi-functional, because it is suitable to be used for top opening double or triple molds.
-
Hydraulic system Designed by proportional pressure and flow ratio, which is steady, quiet and low frequency of malfunction. Two shafts can be operated simultaneously.
-
Slow speed of mold calibration is provided to make the calibration safer and more accurate.
-
Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage.
-
The speed to open/close the mold is adjustable. It is very accurate and reliable.

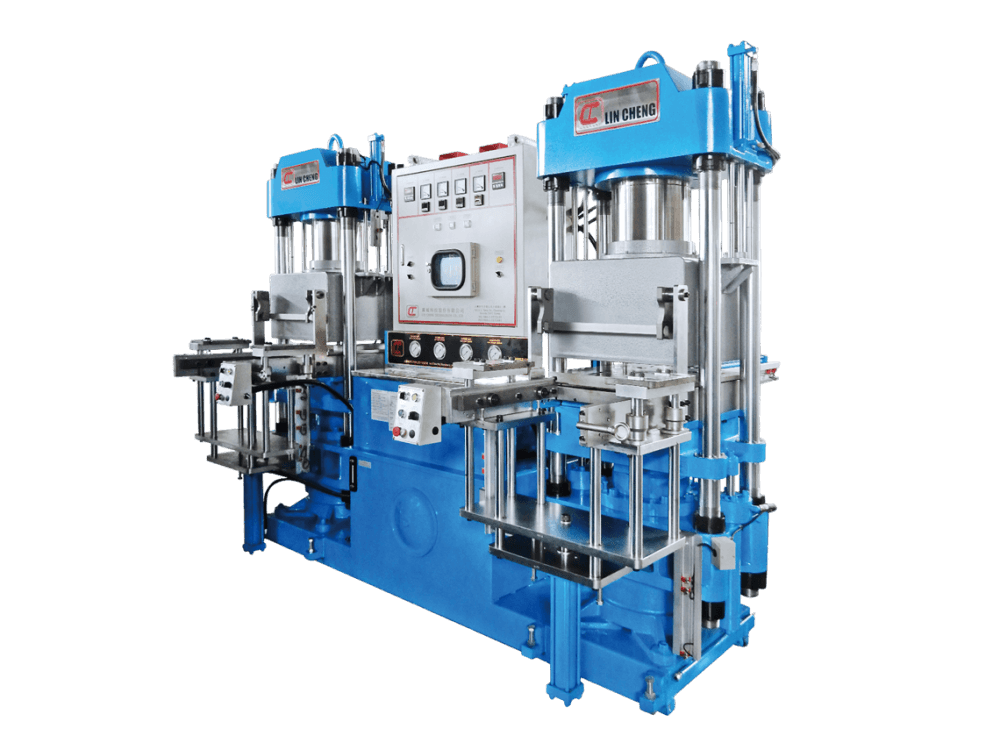

2RT Mold-Open Rubber/Silicone Vacuum Compression Molding Machine
Specifications
| Diameter of piston (mm) | 250 | 300 | 350 | 400 | 450 | 560 | 700 | 800 | 960 |
|---|---|---|---|---|---|---|---|---|---|
| Clamping force (ton) | 100 | 150 | 200 | 250 | 300 | 500 | 800 | 1000 | 1500 |
| Stroke (mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 500 | 900 |
| Heating platen (mm) |
UP400*400 DN420*450 |
UP450*450 DN480*500 |
UP503*508 DN554*640 |
UP600*600 DN650*740 |
UP600*600 DN650*740 |
UP600*600 DN650*740 |
UP850*850 DN910*940 |
UP1000*1000 DN1200*1300 |
UP1500*1500 DN1800*1900 |
|
UP700*700 DN740*800 |
UP700*700 DN740*800 |
||||||||
| Horse (hp) | 7.5/10*1 | 10/15*1 | 10/15*1 | 10/15*1 | 10/10*2 | 15/15*2 | 20/20*2 | 20 | 30 |
