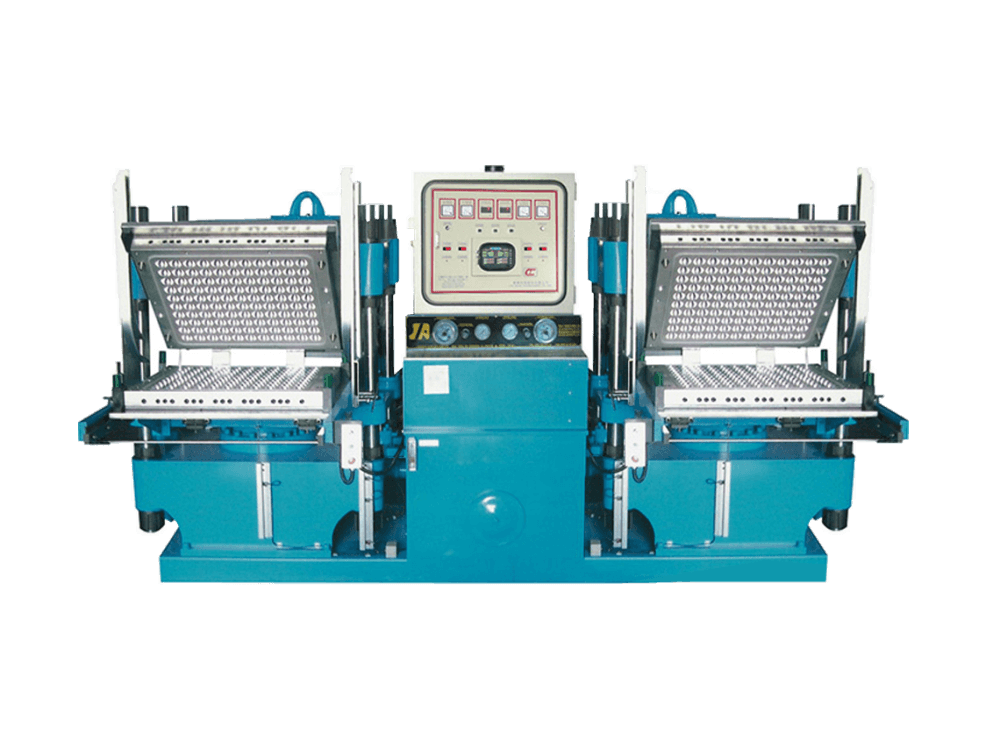

Sphere Rubber/Silicone Compression Molding Machine
/P1-3-5
Features
- Equip with patent rail mold-open, very fast and easy to operate.
- The complete set includes both molds and molding machine.
- Big working bench, plenty cavities, high yield.
Sphere Rubber/Silicone Compression Molding Machine
Specifications
| Diameter of piston (mm) | 250 | 300 | 350 | 400 | 450 | 560 | 700 | 800 | 960 |
|---|---|---|---|---|---|---|---|---|---|
| Clamping force (ton) | 100 | 150 | 200 | 250 | 300 | 500 | 800 | 1000 | 1500 |
| Stroke (mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 500 | 900 |
| Heating platen (mm) | 400*400 | 460*460 | 503*508 | 600*600 | 600*600 | 700*700 | 1000*1000 | 1200*1200 | 1500*1500 |
| 700*700 | 800*800 | ||||||||
| Horse (hp) | 7.5/10*1 | 10/15*1 | 10/15*1 | 10/15*1 | 10/10*2 | 15/15*2 | 20/20*2 | 30 | 30 |
