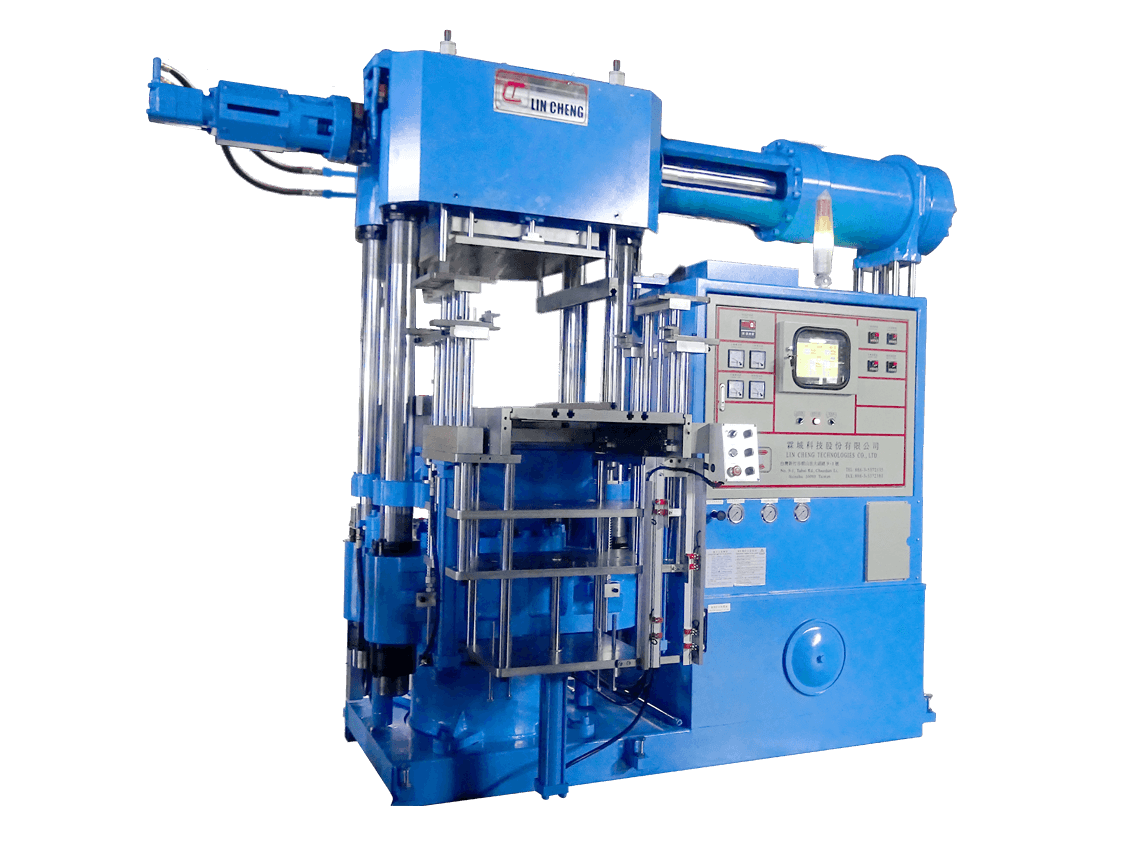

3RT Mold-Open Rubber Injection Molding Machine

P1-1-2

  • 3RT Mold-Open Rubber Injection Molding Machine

Features

  • Mold opening design

    The 3RT surpasses the traditional top opening mold that can be used for the triple or four molds with the design of the opening mold and pushing out the mold in the between. The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.

  • Material supply system

    A special design of two-stage material supply is adopted. It expels bubbles out of the raw material in the most effective way and there is no dead material.

  • Injection volume control

    A design incorporating a high precision optical ruler, made in Germany, is adopted. The injection volume can be calculated and controlled precisely.

  • Design of rotary injection board

    Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.

  • Safety design

    A high-tech infrared safety electronic eye, made in Japan, is available. An automatic warning system is available. To monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.

  • Oil system design

    Dual powers and individual oil system are adopted. Each oil system is designed respectively. It is steady, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.

3RT Mold-Open Rubber Injection Molding Machine
  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 225 250 350 400 450 500 560 630 700 900
Clamping force (ton) 83 100 200 250 300 400 500 600 800 1300
Stroke (mm) 400 400 500 600 600 600 600 600 700 900
Heating platen (mm) 350*450 400*400 503*508
525*560
560*560 580*600
700*700
700*700 800*900 1000*1100 1100*1100 1300*1300
Horse (hp) 10 10 15 20 20 20 20 30 40 50
Injection volume(c.c.) 500 500
900
1500 2000 3000
4000
5000 7900 10000 12000 18000
