2RT Mold-Open Tire Bladder Rubber Back-Injection Molding Machine
IRHB-S2/P1-1-7
Home / Our Products / Injection Molding Machine / IRHB-S2
Features
-
Mold opening design
The 2RT surpasses the traditional top opening mold that can be used for the double or triple molds with the design of the opening mold and pushing out the mold in the between. The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.
-
Injection volume control
High precision optical ruler is adopted for precisely calculating and controlling.
-
Design of rotary injection board
Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.
-
Safety design
A high-tech infrared safety electronic sensor and automatic warning system are adopted to monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.

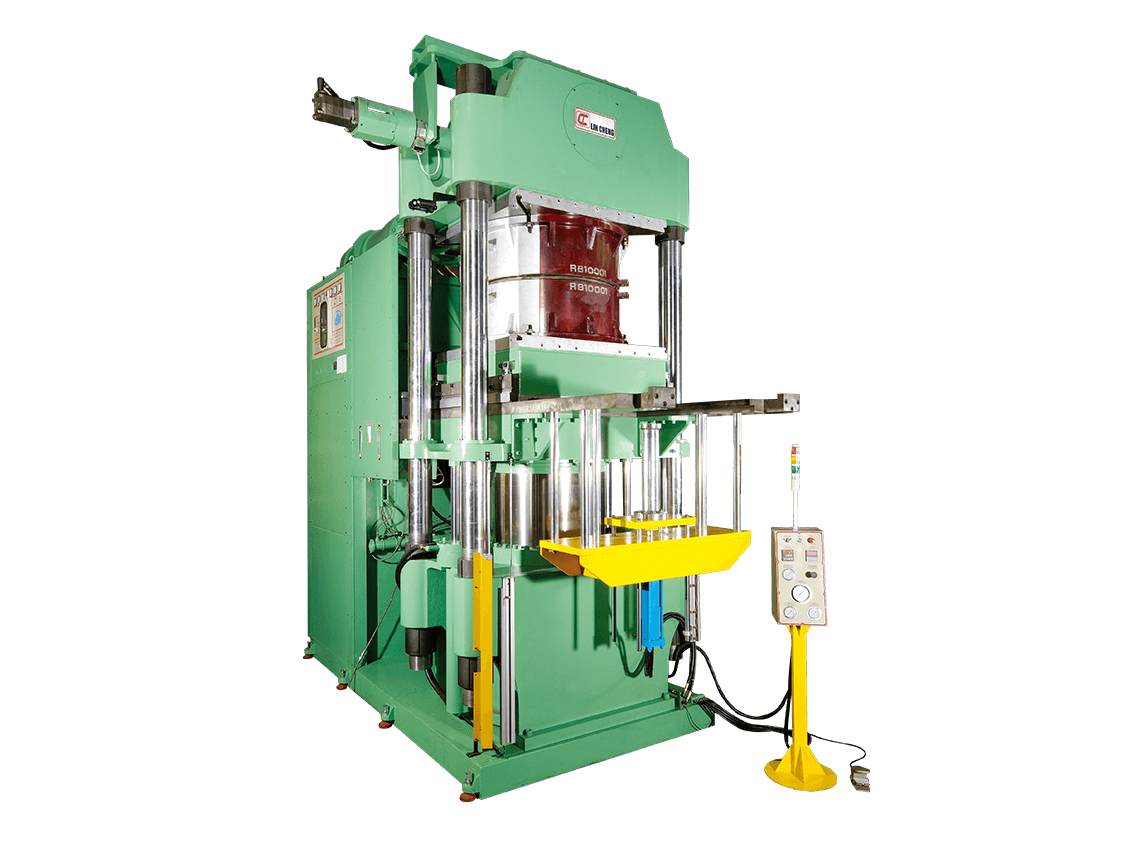

2RT Mold-Open Tire Bladder Rubber Back-Injection Molding Machine
Specifications
| Diameter of piston (mm) | 225 | 250 | 350 | 400 | 450 | 500 | 560 | 630 | 700 | 900 |
|---|---|---|---|---|---|---|---|---|---|---|
| Clamping force (ton) | 83 | 100 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1200 |
| Stroke (mm) | 400 | 400 | 500 | 600 | 600 | 600 | 600 | 600 | 700 | 900 |
| Heating platen (mm) | 350*450 | 400*400 |
503*508 525*560 |
560*560 |
580*600 700*700 |
700*700 | 800*900 | 1000*1100 | 1100*1100 | 1300*1300 |
| Horse (hp) | 10 | 10 | 15 | 20 | 20 | 20 | 20 | 30 | 40 | 50 |
| Injection volume(c.c.) | 500 |
500 900 |
1500 | 2000 |
3000 4000 |
5000 | 7900 | 10000 | 12000 | 18000 |
| Injection Pressure Max(kgf/cm²) | 1650 | 1650 | 1680 | 1700 | 1700 | 1750 | 1778 | 1800 | 1800 | 1900 |
