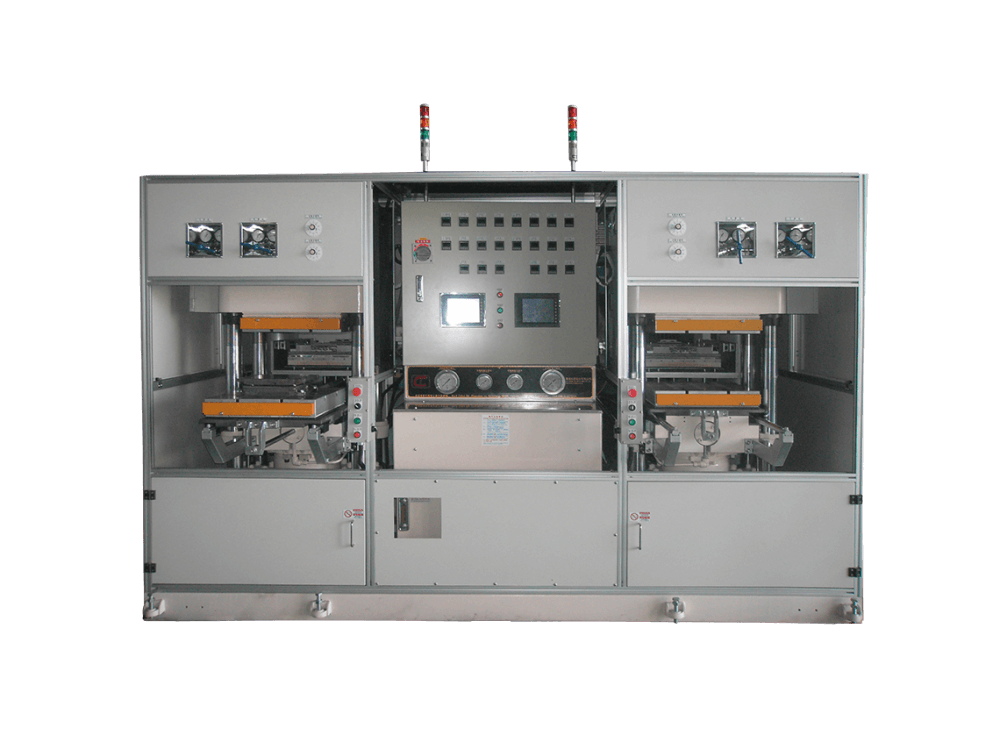

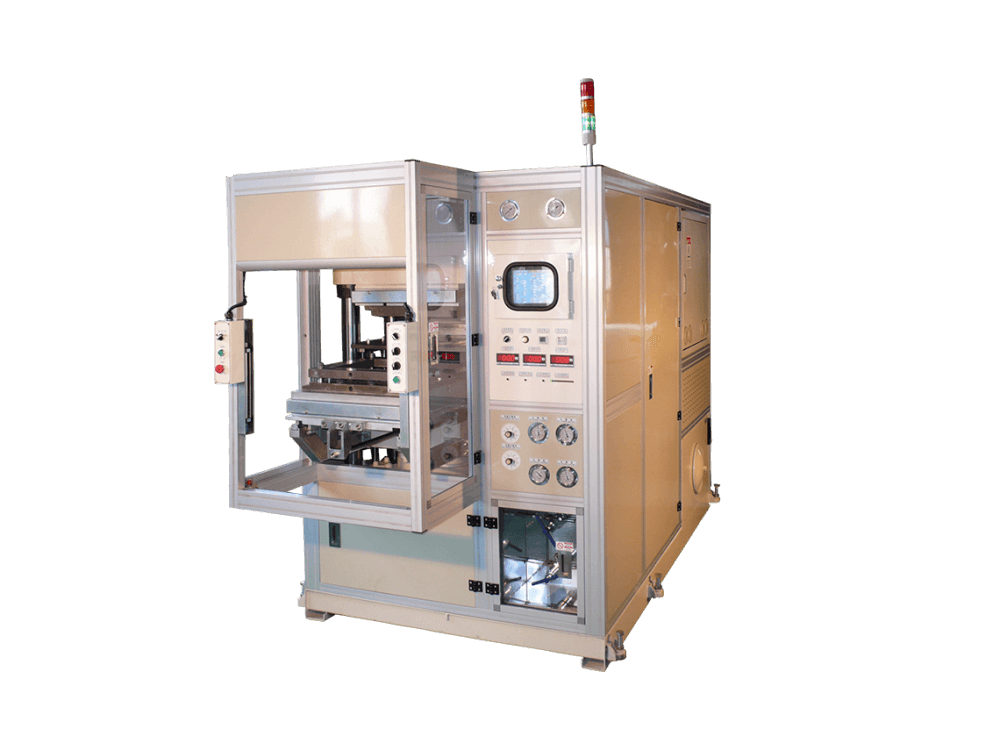

IMD Compression Molding

/P1-3-8

Home / Our Products / Compression Molding Machine /

  • IMD Compression Molding
  • IMD Compression Molding

IMD Compression Molding

  • Nature rubber
  • Rubber of metal boned parts
  • Oil resistance rubber
  • NBR+PVC concoction
  • Synthetic rubber
  • Medical/Pharmaceutical usage rubber
  • Heat resistance rubber

Specifications

Diameter of piston (mm) 250 300 350 400 450 560 700 800 960
Clamping force (ton) 100 150 200 250 300 500 800 1000 1500
Stroke (mm) 250 250 250 250 250 250 250 500 900
Heating platen (mm) 400*400 460*460 503*508 600*600 600*600 700*700 1000*1000 1200*1200 1500*1500
700*700 800*800
Horse (hp) 7.5/10*1 10/15*1 10/15*1 10/15*1 10/10*2 15/15*2 20/20*2 30 30
