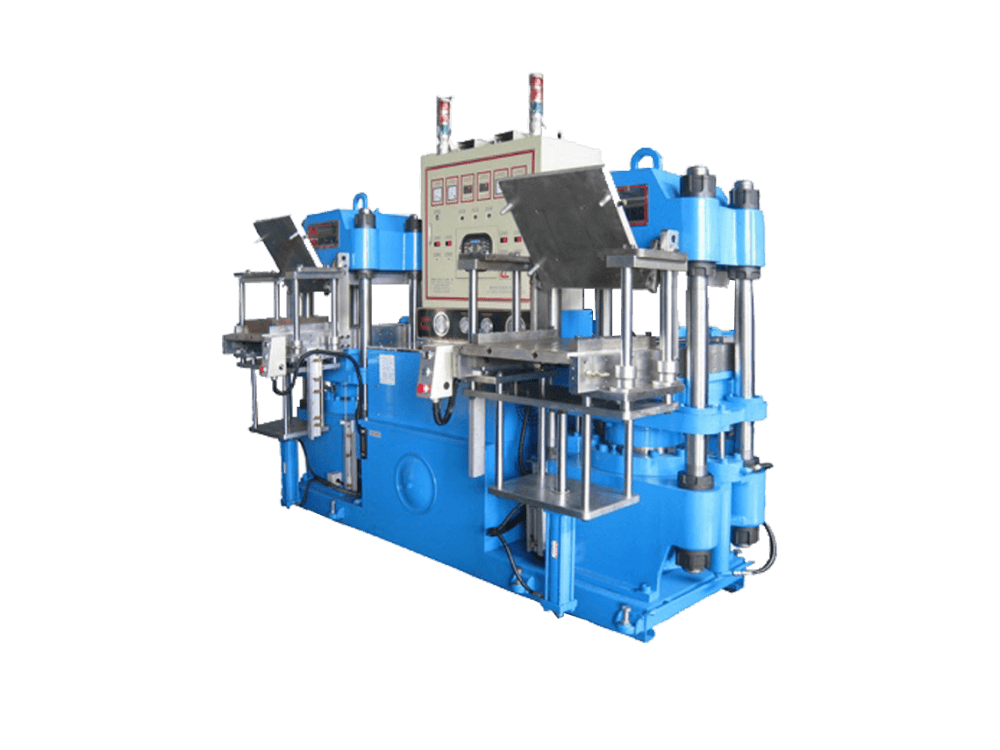

2RT Mold-Open Rubber/Silicone Compression Molding Machine
HCC_D2/P1-3-1
Home / Our Products / Compression Molding Machine / HCC_D2
Features
-
This type of machine is multi-functional, because it is suitable to be used for top opening double or triple molds.
-
High force adopts Dual powers and each oil system is designed respectively. It is steady, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.
-
Slow speed of mold calibration is provided to make the calibration safer and more accurate.
-
Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage.
-
The speed to open/close the mold is adjustable. It is very accurate and reliable.
-
Used for
Car/motorcycle parts, accessories for industrial uses, malamine and etc.
2RT Mold-Open Rubber/Silicone Compression Molding Machine
Specifications
| Diameter of piston (mm) | 250 | 300 | 350 | 400 | 450 | 560 | 700 | 800 | 960 |
|---|---|---|---|---|---|---|---|---|---|
| Clamping force (ton) | 100 | 150 | 200 | 250 | 300 | 500 | 800 | 1000 | 1500 |
| Stroke (mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 500 | 900 |
| Heating platen (mm) | 400*400 | 460*460 | 503*508 | 600*600 | 600*600 | 700*700 | 1000*1000 | 1200*1200 | 1500*1500 |
| 700*700 | 800*800 | ||||||||
| Horse (hp) | 7.5/10*1 | 10/15*1 | 10/15*1 | 10/15*1 | 10/10*2 | 15/15*2 | 20/20*2 | 30 | 30 |
