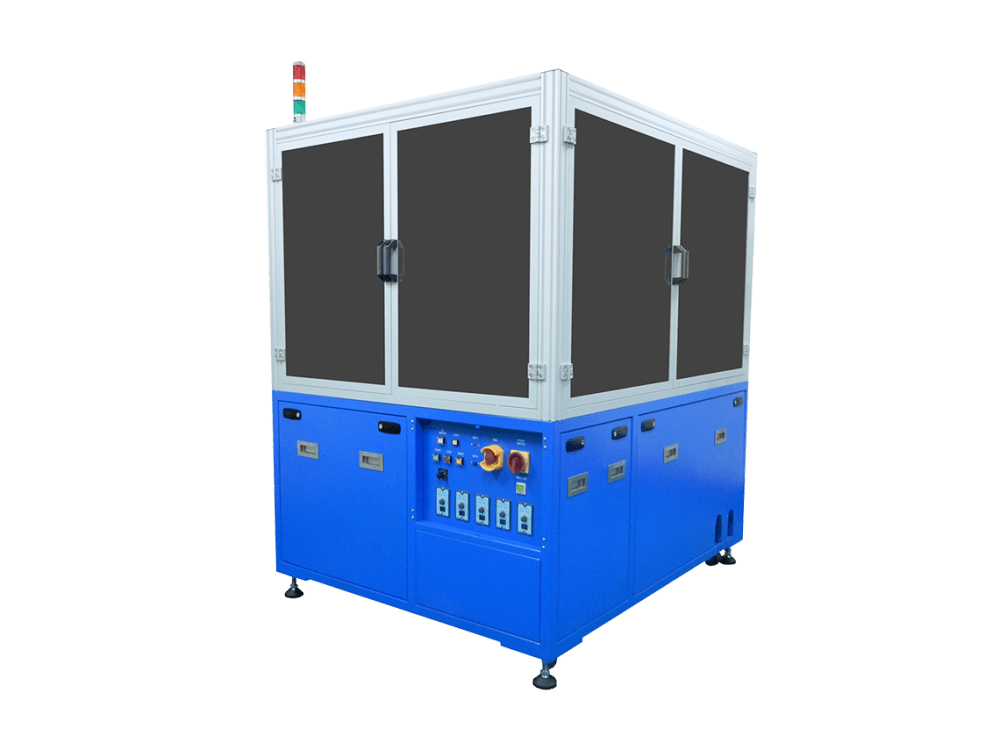

O-Ring Auto Optical Inspector: AOL-60 Series
AOL-60/P1-4-6
Home / Our Products / Other Machine / AOL-60
O-Ring Auto Optical Inspector: AOL-60 Series
Specifications
| Model | AOI-60-B | AOI-60-C |
|---|---|---|
| Product | O-Ring | |
| Size | OD 7mm~60mm；CS≥1 | OD 6mm~60mm；CS≥1 |
| Item | Bending、Defect、Flash、Disrupted、Surface Blemish、ID/OD | |
| Surface Resolution | 120um/pixel | 40um/pixel |
| Surface Precision | 80 um | 80 um |
| Size Resolution | 66um/pixel | 36um/pixel |
| Size Precision | ±33 um | ±18 um |
| Inspect Speed | 5~6 pcs/sec | 10~14 pcs/sec |
| Light Module | multi-angle hi-power LED | multi-angle hi-power LED |
| Turntable | single | double |
| Machine Size | 1630 mm (W) x 1320mm (D) x 1850 mm (H) | 1900 mm (W) x 1760mm (D) x 1820 mm (H) |
| Machine Weight | about 660 kg | about 760 kg |
